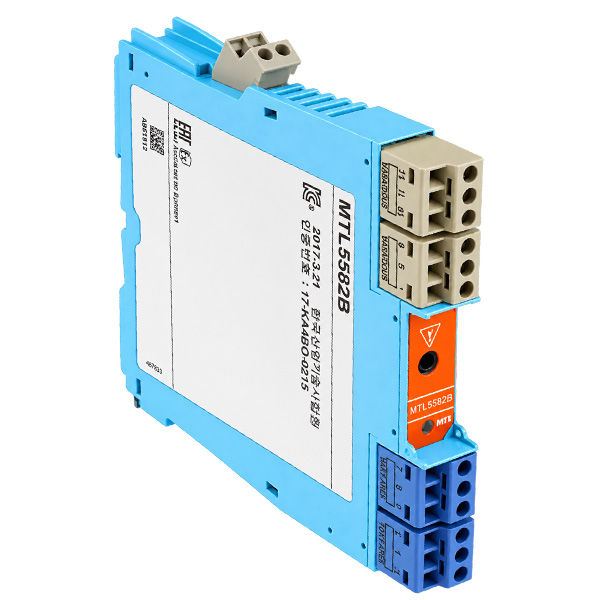

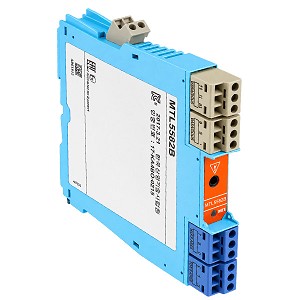

MTL MTL5582B Resistance Isolator

MTL5582B | MTL Resistance Isolator

0 Review(s)

Questions about this item? Be the first to ask here.

Availability: In stock. Ships in 7 working days.

Part Number: MTL5582B

Your Price: USD276.00

Retail Price:USD350.00

You Save:USD74.00(21%)

Quantity

Write a Review

Description
Data Sheets

Part Number: MTL5582B

Model: IS Isolator 5500 Series RTD-RTD Isolator

Manufacturer: MTL

Condition: New & Original in Factory Packing

Factory Warranty: 12 Months

The MTLx582B connects to a 2-, 3-, or 4-wire resistance temperature device (RTD) or other resistance located in a hazardous area, isolates it and repeats the resistance to a monitoring system in the safe area. The module is intended typically (but not exclusively) for use with Pt100 3-wire RTDs. Switches enable selection of 2-, 3-, or 4-wire RTD connection. The MTLx582B should be considered as an alternative, non-configurable MTLx575, for use in RTD applications where a resistance input is preferred or needed instead of 4/20mA. The design is notable for its ease of use and repeatability. The number of wires which can be connected on the safe-area side of the unit is independent of the number of wires which can be connected on the hazardous-area side. The module drives upscale in the case of open circuit detection.

NOTE: This item is a replacement of MTL5082

Availability: In Stock
Estimated Lead Time: Ships in 7 Working Days
Shipping Weight: 1 Kg
